ABI bv, located in Haarlem, Holland, has been developing and manufacturing IP69K stainless steel electric motors and gear motors for the food industry since 2004.
These motors are especially designed to be used in extremely humid and polluted environments. To maintain compliance with the strict requirements of the market there has been a lot of innovation at ABI in recent years.
IP69K
The motors are manufactured out of AISI 304, DIN 1.4301 and the shaft out of AISI 420, DIN 1.4021.
The motors are IP69K certified, which means that the motors are pressure washer proof according to DIN-40050. Stainless steel motors often fail because of moisture (condensation) which builds up in the motor over time. This is caused by a combination of temperature changes, wash downs at different temperatures and a high humidity environment. Specially designed seals and pressure proof chambers in the ABI motors prevent this moisture build-up.
IE3 efficiency
The stainless steel motors produced by ABI meet the highest standard in efficiency, the IE3 standard (premium efficiency). Reducing energy consumption by the application of highly energy efficient motors is only one of the advantages of stainless steel motors. Due to the higher efficiency, heat production is reduced, offering large advantages in safety and applicability.
Product range
Stainless steel motors, 0.18-4kW, in 2, 4, 6 and 8 pole versions. Available in B14, B5 and B3 mounting positions, both in non-ventilated (TENV) and water cooled (TELC) designs.

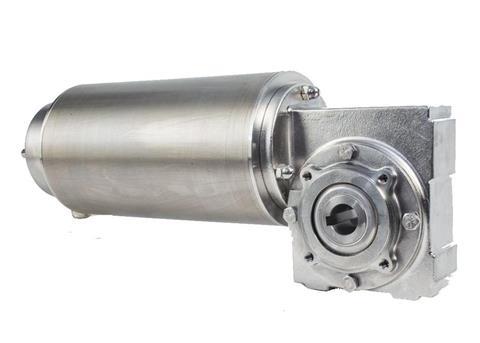

Stainless steel worm gear motors are available in two sizes, up to a maximum torque of approximately 80Nm, in the most common ratios (from 3.6:1 to 75:1).
New
New to ABI’s program is the stainless steel planetary gearbox rang, with IEC mounting position, type PRS80 (up to 130Nm) and type PRS120 (up to 260Nm). These completely sealed (IP69K) stainless steel planetary gearboxes can be attached to (standard) IEC motors. Specific characteristics of the PRS range are: Stainless steel, IEC input, IP69k, Made in Holland, Hygienic design.
ABI b.v.
Seafood Processing Global, 26-28 April 2016, Brussels, Belgium
Hall 4 Stand 5820
