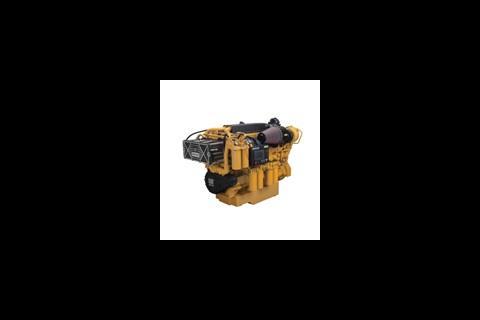

The electronically governed Cat® C32 ACERT™ engine is specifically designed to match 50Hz (1,500rpm) or 60Hz (1,800rpm) generators.
This engine provides customers with a more comprehensive power offering, enabling them to enjoy the benefit of dealing with one supplier for both propulsion and auxiliary power.
Using ACERT Technology, the C32 marine engine provides the very best in durability, reliability and fuel efficiency. It includes the latest Mechanically actuated Electronically
controlled Unit Injection (MEUI) fuel system, a state-of-the-art Electronic Control Unit (ECU) and optimised turbocharging and aftercooling. These features combine to deliver excellent
fuel economy, particularly at part load, reduced emission levels and reliable maximum power output.
The C32 ACERT auxiliary/generator set engine meets current EPA Tier 2 and IMO emissions regulations. Marine Classification Society (MCS) approvals have been received from ABS, BV, CCS, DNV, GL, KR and LR.
The vee-type, 12-cylinder, 4-stroke diesel engine with a displacement of 32.1 litres is manufactured in Caterpillar's innovative Marine Center of Excellence (MCOE) in Greenville, South Carolina, USA.
Similar to the C32 ACERT design, the new Cat C18 ACERT auxiliary/generator set marine engine balances power density, fuel efficiency and emissions reduction to perfectly match
50Hz (1,500rpm) or 60Hz (1,800rpm) generators. This EPA Tier 2 and IMO-compliant, in-line, 6-cylinder, 4-stroke diesel engine offers 145mm bore and 183mm stroke totalling 18.12 litres displacement. MCS certifications have been received from ABS, BV, CCS, DNV, GL, KR, LR and RS. RINA certification is expected short term.
The new Cat C-series auxiliary/generator set marine engines combine most-modern design with high-quality manufacturing, built on the reliable platform of about 6,000 Cat C18 and C32 marine engines sold to date.
