Warning for beam trawlers after Belgian tragedy

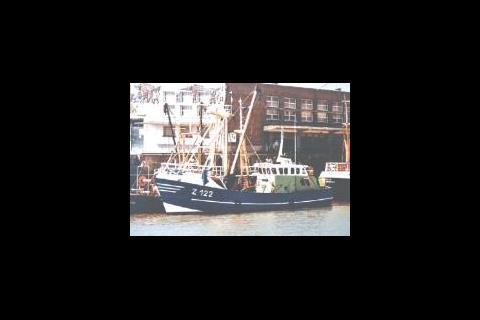

At about 16:30 UTC on 13 December 2005, the 23.78m steel hulled Belgian beam trawler, “Noordster” (Z 122), caught her port trawl gear on a fastener while fishing 11.5nm south of Beachy Head. During the ensuing attempts to free the gear from the fastener, “Noordster” listed rapidly and capsized. There was only one survivor of the four crewmen on board.

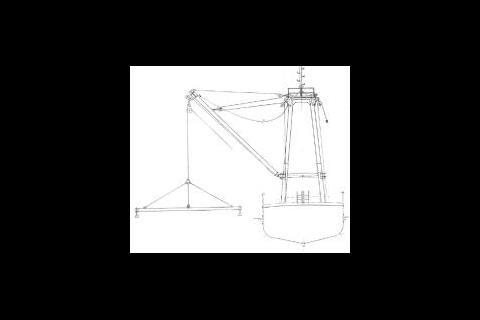

After “Noordster” became fast, the starboard trawl gear was hauled first to the surface, and the derrick was raised and the net and beam brought clear of the water. The port gear, with its derrick in the normal horizontal towing position, was hauled until the warp was tight, causing the vessel to list to port. The three crewmen on deck moved to the starboard side of the vessel as water came through the freeing ports and then over the port bulwark.

In the wheelhouse, the skipper attempted to call another Belgian beam trawler at about the same time as the main engine stopped. He then shouted to the crewmen through an open window, that he was unable to do anything more. The starboard trawl gear, hanging from the derrick head, probably then swung inboard and “Noordster” rapidly capsized to port. The crew then found themselves in the water. None of them were wearing lifejackets.

The youngest member of the crew swam to the upturned hull and managed to climb on to it. He saw the other two deck crew float past, face up, but he was unable to pull them on board the hull, and they floated away. A short while later, he heard knocking noises from within the hull, and assumed that the skipper was still inside the vessel.

It soon got dark and the survivor saw a number of ships pass by, but he was unable to signal to them. The following morning, a passing ship saw the upturned hull and the survivor and raised the alarm. An intensive search and rescue operation began immediately, coordinated by Dover MRCC. The survivor was rescued by a Coastguard helicopter and a search by military and civilian vessels located and recovered the bodies of the two crewmen. Navy divers entered the hull of the wreck to search for the skipper, but were unsuccessful. His body was located a short distance away by other search units. However, before it could be recovered, the skipper’s body sank and he has not been seen since.

“Noordster” began to drift, and she sank two days later in the separation zone between the southwest and north-east lanes of the Traffic Separation Scheme.

MAIB organised an ROV and diver survey of the wreck to help determine the likely cause of the capsize. The survey confirmed that the starboard derrick and trawl gear had been topped while the port derrick was still deployed in its trawl position, and the warp length had been reduced to approximately that of the depth of water at the capsize location. The clock in the wheelhouse had stopped at approximately the time of the capsize.

Recommendations have been issued to The Federal Public Service of Mobility and Transport (FPSMT), Belgium, which are designed to provide Belgian fishermen on beam trawlers with a greater awareness of the inherent dangers of fasteners. Additionally, a recommendation has been made to the FPSMT which seeks to minimise the risk that EPIRBs and liferafts fitted to Belgian fishing vessels become entrapped in the event of capsize.

Further examples

MAIB has investigated a number of other accidents involving beam trawlers that have capsized, often with loss of life.

In February 1991, the Plymouth-registered “Pescado” was lost off the south coast of Cornwall, with all six crew, when her gear became snagged on the seabed.

After the initial snagging, the two sets of gear probably became entangled, and the vessel heeled very heavily to starboard because of the weight of both sets of fishing gear coming on to the starboard derrick. She sank due to flooding through openings which were not securely closed.

In November 1997, the Brixham-registered “Margaretha Maria” was lost south-west of Lizard Point with the loss of all four crew. In an attempt to discover the cause of her loss, two underwater surveys on the wreck were carried out. Snagging was considered but, as her fishing gear had apparently been at the surface at the time she was lost, it was discounted.

During the underwater surveys, the port net was found with a quantity of sand and shells, estimated to have weighed about 3.75 tonnes in water. The starboard net was found empty, showed signs of serious damage and was found partly wrapped around the beam. Stability calculations showed that capsize to port would have been certain, immediate, and rapid had the starboard net failed with 3.75 tonnes in the port net. An alternative explanation was that the derricks had been raised to gain access to the “lazy deckies”, reducing stability to a negligible amount resulting in even the slightest movement in the water being sufficient to turn the vessel over.

In July 2002, the Zeebrugge-registered Belgian beam trawler “Flamingo” capsized just inside UK waters to the east of Harwich. All four crew were lost while they were cleaning the nets prior to bringing the catch on board. The wreck of “Flamingo” was recovered, and the investigation revealed that both derricks had been topped, the starboard net was intact with about 250 to 500kg of stones in it, and the port net was empty with the lower 6m missing. The break in the port net had occurred at the “weak link”, designed to break first in the event of excess weight. This failure had caused a large heeling moment, leading to capsize.

The full report can be examined on the MAIB web site at www.maib.dft.gov.uk/publications/investigation_reports/2006/noordster.cfm
