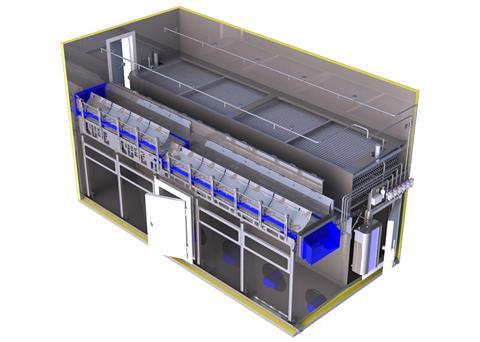

The freezelite bed freezer is designed for cooling and freezing bulk products such as shrimps and prawns.
The small dimensions of this system (width 3,700mm, height 4,500mm, length 4,720mm-7,400mm means that freezelite can be used where limited space is available. Larger capacities are covered by the blizzard system.
Completely pre-mounted on a frame, maximum flexibility in a growing or changing production environment is guaranteed.
With its capacity range up to 1,500kg/h-2,500kg/h, a belt width of 880mm (metal or plastic modular belt), an integrated belt cleaning system, its stainless steel design as well as its integrated cleaning system, the freezelite offers a very extensive standard configuration.
Additionally there are numerous options for this system available: an externally extended infeed, product dewatering, a belt agitator, etc.
Further special features:
- Frequency-controlled fans (individual control for the pre-freezing and main freezing zones)
- Standard industrial components as well as DIN- and standard parts increase production reliability and decrease costs for spare parts
- Inspection bridge between air cooler and conveyor system for supervision of the freezing process and for cleaning purposes
- Easy disassembly of system parts for maintenance and cleaning purposes without tools
- Multi-language and symbol-controlled operation via touch-screen display
- Program selection for freezing/cooling, defrosting and cleaning via comfortable recipe administration and quick selection by means of customer-specific product pictures
- Modem for remote control included in basic version
The design of the freezelite considers the latest development in terms of service life extension (production time without defrost). A modified air flow through the air cooler optimises the distribution of frost and ice on the fin surface. Thus, the process time available before pressure loss due to snow building and defrost of the air cooler, can be increased considerably.
