With its recently developed ProfitLine type PFR, Maurer-Atmos GmbH from Germany claims to have set a new milestone towards state-of-the-art technology.

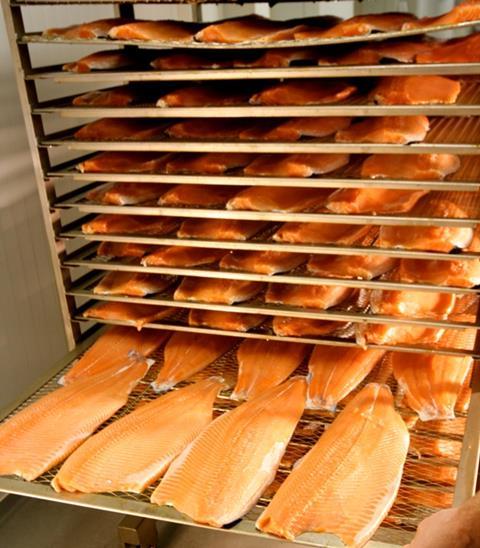

According to the company, this system, which has been developed for the fish processing industry, can achieve the set target values quicker than any other system. Due to the extensive air circulation, Maurer-Atmos guarantees a constant product quality with minimum weight loss upon drying and smoking, despite maximum trolley loading.
The environmentally friendly Rondair closed reduction system also solves any emission problems. The system can be used with friction or Exotica sugar smoke generators without any additional subsequent cleaning equipment. Alternatively further external smoke generators are available, such as smouldering sawdust/woodchip smoke, condensate smoke and liquid smoke. The Maurer-Atmos thermal afterburning system with heat recovery is available for use with glow smoke generators.
The fish smoke systems are designed for industrial applications, due to their systematic and technically sophisticated construction. The central air conditioning system incorporates all required equipment such as a heat exchanger, a central fan, an air alternating damper, fresh air and smoke supplies and a mixing chamber for air conditioning.
Dust and water are unable to enter the system as the interior and exterior casing and the systems’ robust floor are welded to be 100% steam-tight. There are no cavities that could be sources of bacterial contamination.
With its display of text and symbols and touch screen for almost all languages, Maurer-Atmos’ own controlling system Titan 2 fits perfectly to the ProfitLine. Titan 2 can operate up to eight installations and has an integrated data recording in a short-term archive that can be monitored from a desktop.
The company also says that the ProfitLine achieves all required smoke flavours and colourings.
